Five Mistakes Architects Make When Specifying Air Barriers (And How to Avoid Them)
When designing today's high-performance buildings, architects are expected to balance energy efficiency, durability, constructability, and cost. One of the most important decisions affecting all of these factors is the selection of the air barrier system. Unfortunately, many air barrier specifications are based on legacy requirements that have been copied from project to project for years. As building envelope technology has evolved, so have the products available to meet today's performance expectations. Understanding a few common specification mistakes can help architects deliver better-performing buildings while making life easier for contractors and owners.
1. Specifying Thickness Instead of Performance
One of the most common misconceptions is that a thicker membrane automatically provides better protection. Many specifications still require a 40-mil air and vapour barrier, simply because that has been the industry standard for many years.
However, thickness alone is not a measure of performance.

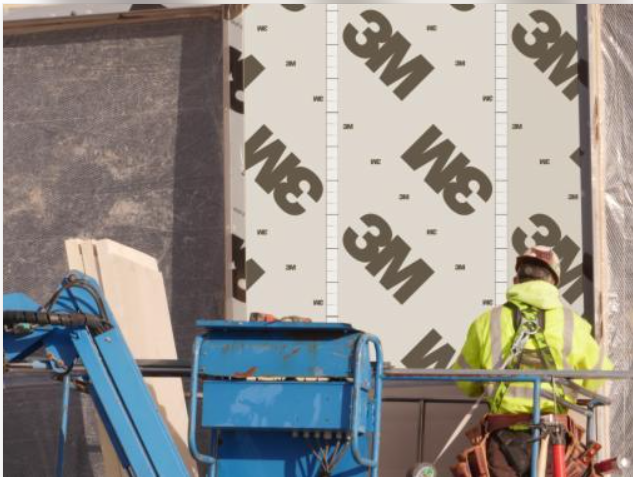

Modern membranes are engineered using advanced materials that deliver exceptional air leakage resistance, water resistance, and durability without the added bulk. Products such as 3M™ 3015NP Air & Vapour Barrier Membranes use a high-performance film with an aggressive acrylic adhesive to achieve excellent results while being only about 10–12 mils thick.
Rather than specifying a minimum thickness, architects should focus on whether the membrane meets recognized performance standards such as:
-
ASTM E2178 – Air Permeance of Building Materials
-
ASTM E2357 – Air Leakage of Air Barrier Assemblies
-
CAN/ULC-S741 – Standard for Air Barrier Materials
Performance testing—not thickness—is what ultimately determines how well an air barrier protects a building.
2. Forgetting the True Cost of Installation
Material price is only one part of the total project cost. Labour often represents a much larger expense than the membrane itself.
When specifications require products that involve multiple installation steps, labour costs increase quickly. Primer application, drying time, handling heavy rolls, and correcting installation issues all consume valuable time.
Modern primerless membranes can significantly reduce installation time by:
-
Eliminating primer application
-
Reducing waiting time before installation
-
Simplifying detailing around windows and doors
-
Improving productivity on large commercial projects
When evaluating air barrier systems, architects should consider the total installed cost, not just the purchase price of the material.
3. Ignoring Installation Temperature and Weather Conditions
Construction rarely happens under perfect weather conditions. Cold temperatures, humidity, and changing site conditions can all affect installation.
Some traditional self-adhered membranes require additional preparation or have narrow installation temperature ranges that can delay a project.
Products designed for a wider range of installation conditions help contractors stay on schedule while reducing costly downtime.
Reviewing manufacturer installation guidelines during the specification stage helps ensure the selected membrane is practical for the project's anticipated construction schedule and climate.
4. Overlooking Primer Requirements
Primer requirements are often overlooked during specification writing, yet they can have a significant impact on project timelines.
Traditional membranes frequently require primer on concrete, gypsum sheathing, masonry, and other substrates. That means additional material costs, extra labour, drying time, and another quality-control step.
Primerless technologies eliminate an entire phase of the installation process.
For many projects, this means:
-
Faster installation
-
Lower labour costs
-
Fewer weather-related delays
-
Reduced risk of application errors
-
Simplified project coordination
When evaluating air barrier systems, it's worth asking whether a primer is truly necessary or whether a primerless solution can achieve the required performance more efficiently.
5. Not Considering Compatibility with the Entire Building Envelope
An air barrier doesn't work in isolation. It must integrate seamlessly with windows, doors, curtain walls, transition membranes, flashing tapes, sealants, and a variety of construction materials.
Architects should verify compatibility with common substrates such as:
-
Concrete
-
Aluminum
-
Glass
-
Exterior gypsum sheathing
-
Plywood and OSB
-
Steel
-
Insulated sheathing
Choosing a system that bonds well to multiple surfaces helps create a continuous air barrier and reduces the likelihood of failures at transitions and penetrations—the locations where leaks most often occur.
Specify Performance, Not Tradition
Air barrier technology has advanced considerably over the past decade, yet many specifications continue to rely on outdated requirements that don't necessarily reflect today's best-performing products.
Instead of focusing on membrane thickness or following legacy specifications, architects should evaluate products based on independently verified performance, ease of installation, compatibility with the building envelope, and total installed cost. These factors often have a greater impact on the long-term success of a project than thickness alone.
At National Hardware Sales Ltd., we work closely with architects, consultants, and contractors to help identify air and vapour barrier solutions that meet project requirements while improving installation efficiency. As an authorized distributor of 3M™ 3015 Air & Vapour Barrier Membranes, we can provide technical information, product recommendations, and specification support to help you make informed decisions.
Learn More About 3M™ Air & Vapour Barrier Solutions
If you are specifying or installing commercial air barrier systems, explore our complete line of 3M™ 3015 Air & Vapour Barrier Membranes. We stock genuine 3M products and can help you choose the right membrane for your project.
